Humber River Hospital
Toronto, Ontario

Precast concrete contributes to a modern composition

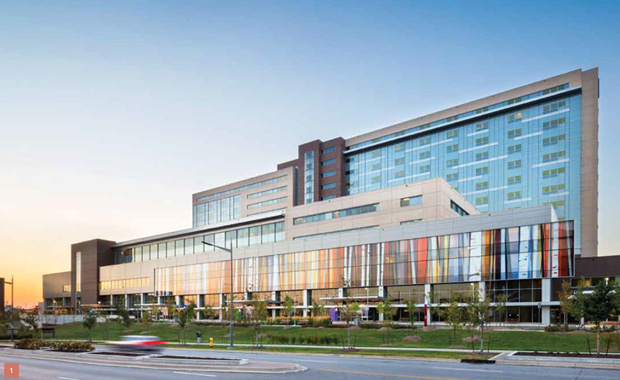

The Humber River Hospital has gone from a hospital constrained by the limitations of aging technology and building infrastructure to North America’s first fully digital hospital. The new Humber River Hospital, which opened in October 2015, uses the most current technologies to enhance all aspects of quality patient care delivery, improving efficiency, accuracy, reliability and safety. At 167,000 square metres [1.8 million square feet] of space, it is the largest acute care hospital in the Greater Toronto Area.

Solving Design Challenges

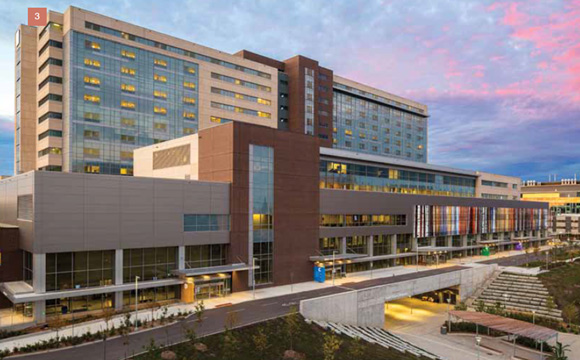

The building is comprised of three simple components reflecting the hospital’s essential functions: ambulatory block; diagnostic and treatment podium; and inpatient tower. The architecture of these forms takes inspiration from the architecture of Toronto, following clean rectilinear lines. As the exterior palette of materials was developed, precast concrete was envisioned from an early stage of the design to provide a solid and durable material to help accentuate the overall goals of the hospital.

Because the building is a tangible symbol of the new Humber River Hospital, it needed to project a contemporary image. HDR’s designers composed a façade using precast concrete panels with two finishes to help accentuate the articulation of window openings and feature a strong system of reveals relating to the curtainwall fenestration pattern. This pattern also symbolically mimics the rock out-croppings lining the banks of the Humber River. The reveals within the panels echo the movement of the river moving over the river’s rocks.

Precast concrete defines the mass of the inpatient tower and provides the curtainwall used on north and south sides of the tower a definitive termination point. Overall, the building uses 12,000 square metres [130,000 square feet] of precast concrete as a part of its 33,400 square metres [360,000 square foot] exterior envelope. The project also includes two precast concrete parkade structures providing 2,025 parking spaces for patients, visitors and staff. An important element of the design was to provide a unified palette of materials and to tie the parkade structures to the hospital.

Function follows Aesthetics
The use of precast concrete panels on the Humber River Hospital was based not only on their aesthetic capabilities, but also the ability to support the rigorous functional requirements of the design including sound transmission, thermal efficiency, durability and ease of construction.

  • Sound Transmission - The density of precast panels was considered in the sound transmission study for the building to help dampen noise from the surrounding streets and highway.

  • Thermal Efficiency - In creating the design for the building’s exterior envelope, the thermal mass of precast concrete was considered to minimize heating and cooling loads.

  • Durability - Precast concrete is resistant to rain, flood damage and windblown debris.

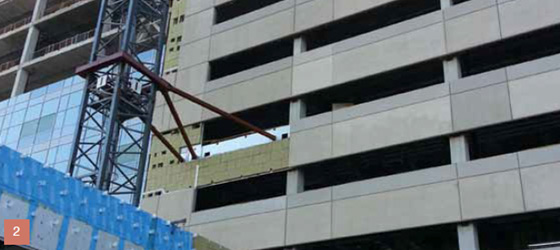

  • Ease and Speed of Construction - The use of prefabricated exterior envelope components such as unitized curtainwall and precast concrete wall panels allowed for installation via cranes and minimized the need for exterior scaffolding. Also, while the cast-in-place concrete structure was rising on site, the precast concrete panels were being cast concurrently in the factory.



Technical Aspects of the Design

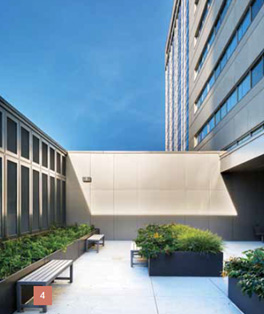

The design of the envelope employs precast concrete panels bearing on the slab edge of the cast-in-place concrete structure. The panels provide the exterior finish component of a standard cavity wall assembly utilizing an insulated, metal stud back-up wall on the inside. The precast concrete panel wall system provides traditional rainscreen performance which allows for the removal of moisture from the cavity wall via internal flashing and a series of weeps at horizontal joints.

The parkade structures employ long-span prestressed precast double tee beams on inverted tee girders and precast columns supporting the girders. The lateral loads are resisted by precast shear walls. Precast concrete was preferred for the construction of the parkades to provide on-site worker parking and to alleviate site congestion. PSI supplied and installed structural and architectural components for the two multi-level parking decks. Architectural finish included thin brick and sandblasted concrete. HDR’s design of the Humber River Hospital combines precast concrete, curtainwall, aluminum panels and masonry in a masterful way to achieve the goal to provide a state-of-the-art, timeless building for Toronto.




Photos © Dan Schwalm \ HDR, [photo 2 courtesy RES Precast Inc.]
Architect:
HDR Architecture Associates, Inc
Engineer:
Halsall Associates
Precast Supplier:
RES Precast Inc. and PSI
Construction Manager:
PCL Constructors Canada
